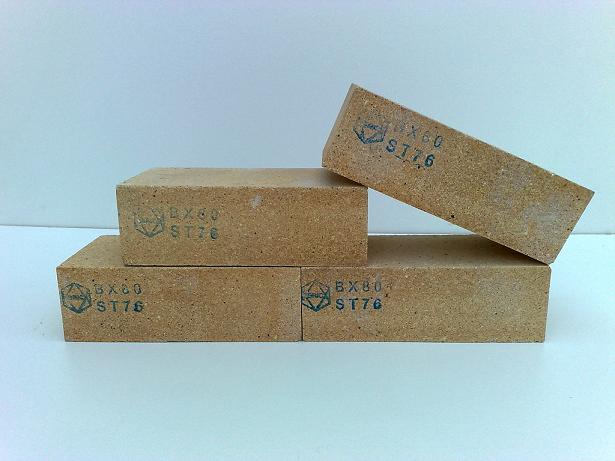

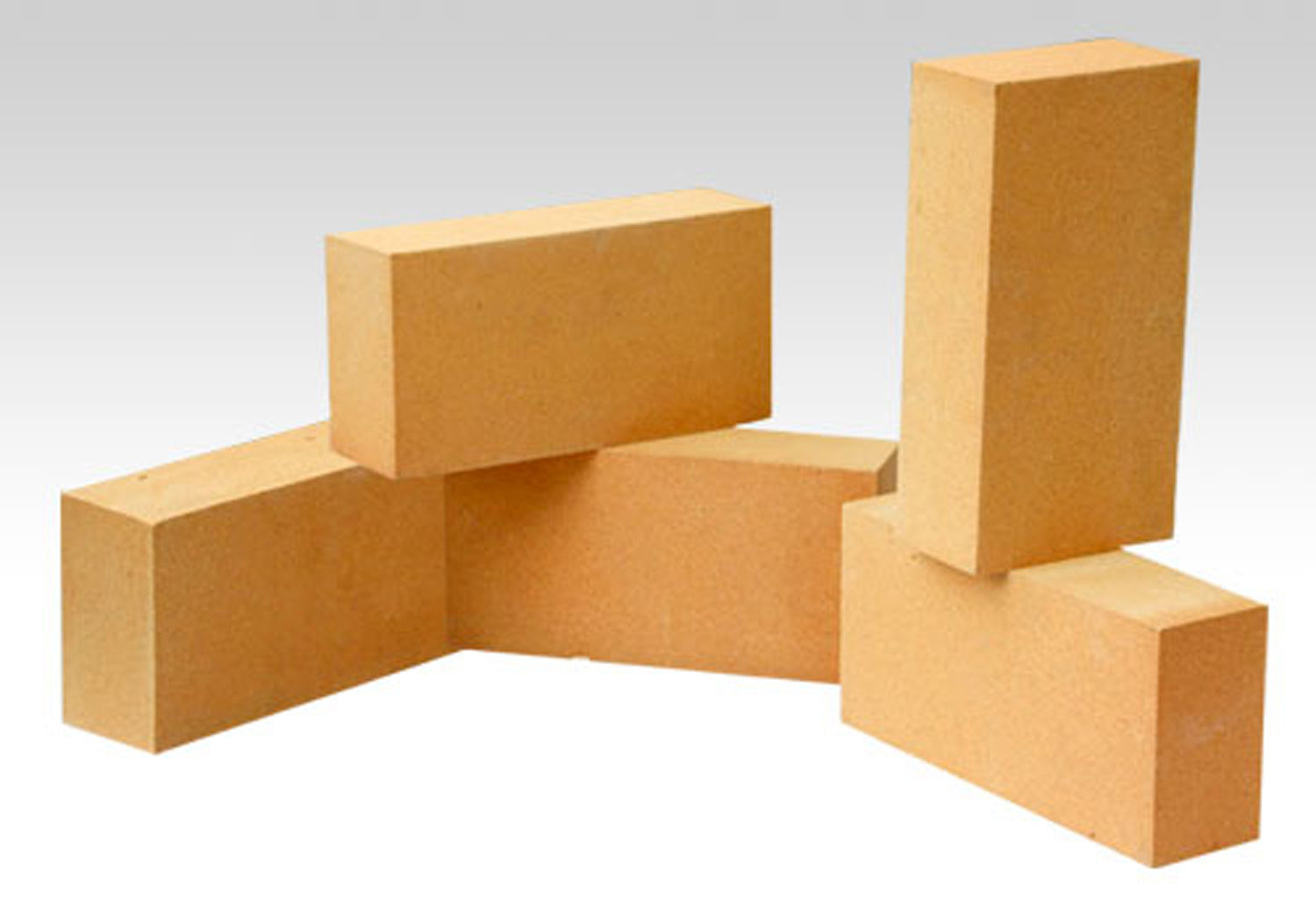

Fire Clay Brick (อิฐทนไฟไฟร์ยเคลย์)
Highlights
• Good thermal shock and thermal spalling resistance
• High mechanical strength
• Good resistance to abrasion and corrosion Good volume stability at high temperature
•Super-duty fireclay, high-duty fireclay and medium-duty fireclay bricks alumina contents ranging from approximately 28% to 43%
Application
• General uses in heat containment units
• Applicable for clinker coolers, cyclone preheaters and calcining zone of cement rotary kiln, combustion chamber of boilers, incinerators and safety lining of ladles
• Back-up lining of boilers and heat exchangers lining in glass furnaces Blast furnace stoves, forging furnaces, acid storage tank, etc.
ลักษณะพิเศษ
- ทนต่อการเปลี่ยนแปลงอุณหภูมิอย่างฉับพลันโดยไม่มีการร้าวล่อน
- รับน้ำหนักได้ดีที่อุณหภูมิสูง
- ทนต่อการขัดสีและการกัดกร่อน
- รักษารูปทรง สัณฐานได้ดีและหดตัวน้อยในอุณหภูมิสูง
- มีทั้งคุณภาพ super-duty fireclay, high-duty fireclay และ medium-duty ซึ่งมีองค์ประกอบของอลูมิน่าแตกต่างกันตั้งแต่ 28% ถึง 43%
การใช้งาน
- ใช้ในอุตสาหกรรมทั่วไปที่มีเตาเผาในกระบวนการผลิต
- บริเวณ Cyclone Preheater และ Calcining Zone ของหม้อเผาซิเมนต์ และบริเวณห้องเผาไหม้ (Combustion Chamber), หม้อน้ำ (Boiler), เตาเผาขยะ และบริเวณ Safety lining ในเบ้า (Ladle)
- บริเวณหลังคา Back-up lining ของหม้อน้ำ (Boiler)
- ผนังของ Heat Exchanger ในเตาหลอมแก้ว
Our Fire Clay Brick |
High Alumina Brick (อิฐทนไฟไฮอลูมิน่า)
Highlight
- Alumina contents up from 50% to 90%
- Excellent corrosion resistance to neutral slag and liquid metal penetration at high temperature
- Withstand various attacks from volatile matters e.g. ash from coal, lignite, fuel oil, etc.
- High density, high mechanical strength and good resistance to thermal spalling, good volume stability at high temperature
Application
- General use in heat containment unit form temperature 1500-1900C
- Resistant to highest temperature for steelmaking operations such as ladle applications, sidewall, roofs, burner blocks, anchor brick for reheating furnaces and many other areas
- Transition and cooling zones of rotary cement kilns, lime kilns, etc.
- Lower sidewall and bottom of aluminum refining, melting furnaces, etc.
ลักษณะเด่น
- มีส่วนประกอบของอลูมิน่าตั้งแต่ 50% และสามารถใช้งานได้ถึง 1900 °C
- ทนต่อการกัดกร่อนของ Slag และการแทรกซึมของน้ำโลหะที่ละลายที่อุณหภูมิสูง
- ต้านทานการกัดกร่อนจากสารระเหยชนิดต่างๆ เถ้าจากลิกไนต์ และน้ำมันเตา
- มีความหนาแน่นและความแข็งแรงสูง ทำให้รับน้ำหนักได้ดี เหมาะที่จะใช้งานในบริเวณที่มีอุณหภูมิสูง โดยไม่มีการเปลี่ยนแปลง ขนาดแล
การใช้งาน
- ใช้งานได้ภายในเตาที่มีอุณหภูมิระหว่าง 1500-1900 °C.
- เหมาะที่จะใช้ในส่วนต่างๆ ของขบวนการผลิตเหล็กที่มีอุณหภูมิสูง เช่น ในเบ้า (Ladle), หลังคาเตา, Burner Block, และอิฐ Anchor ในเตาเหล็กรีดซ้ำ เป็นต้น
- ใช้ในบริเวณ Transition zone ของหม้อเผาซิเมนต์, ผนังและหลังคา Cooler ในหม้อเผาซิเมนต์ และหม้อเผาปูนขาว เป็นต้น
- บริเวณผนังด้านล่างและพื้นของเตาหลอมอลูมิเนียม เป็นต้น
Insulation Brick (อิฐฉนวนกันความร้อน)
Highlights
- Designed for low heat losses application
- Providing good energy conservation
- Very light-weight characteristic
- Low thermal conductivity and excellent heat resistance
- Maintain good dimensional stability at elevated temperature
Application
- Back-up linings for fireclay and high alumina bricks in boilers, ceramic kilns, reheating furnaces, glass furnaces, periodic kilns, high efficiency incinerators, etc.
- Back-up linings of cyclone preheaters and clinker coolers in cement plant, hot gas generators, hot air ducts, stacks, floor lining for kiln cars, etc.
- Working surface for general heat containment units ranging from 1,300-1,800C
ลักษณะพิเศษ
- ป้องกันการสูญเสียความร้อนได้ดี
- ประหยัดพลังงาน
- น้ำหนักเบา
- มีค่าการนำความร้อนต่ำจึงสามารถกักเก็บความร้อนได้ดี
- สามารถรักษารูปทรง สัณฐาน และขนาดได้ดีในอุณหภูมิสูง
การใช้งาน
- ใช้เป็น Back up lining ของอิฐไฟร์เคลย์ และอิฐอลูมินาสูง ในหม้อไอน้ำ, เตาเผาเซรามิก, เตาเหล็กรีดซ้ำ, เตาหลอมแก้ว เตาเผาขยะประสิทธิภาพสูง และเตา Periodic เป็นต้น
- ใช้เป็น Back up lining ของ Cyclone, Preheaters และ Cooler ในอุตสาหกรรมปูนซีเมนต์ และใช้เป็นพื้นของรถเตาเซรามิก เป็นต้น
- ใช้งานได้ตั้งแต่อุณหภูมิ 1,300-1,800 °C ตามคุณภาพที่เลือกใช้
Siam Refractory สยามอุตสาหกรรมวัสดุทนไฟ |
Isolite Insulation Brick |
Mortar Refractories (ปูนทนไฟ)
Highlights
- For bonding the individual refractory bricks and protecting the joints form corrosive by slag and other fluxes.
- Available for uses in acid conditions and suitable for bonding between insulation bricks
- High bonding strength with low shrinkage
- Provides resistance to air infiltration and outward flow of gases
- Available in both heat setting mortars and air setting mortars
Application
- Used for laying all types of refractory bricks or as a neutral layer between bricks of any types and in applications of chemical-resistance required
ลักษณะพิเศษ
- ใช้ก่ออิฐทนไฟให้ยึดติดกันได้ดี มีความแข็งแรง และอัตราการหดตัวต่ำ
- สามารถป้องกันรอยต่อระหว่างอิฐ แต่ละก้อนจากการกัดกร่อนของ slag และ flux รวมทั้งป้องกันการแทรกซึมของอากาศ และการไหลผ่านของก๊าซได้ดี
- สามารถใช้ในสภาพที่เป็นกรดและใช้เป็นปูนทนไฟสำหรับอิฐฉนวนกันความร้อนได้
- ทนความร้อนสูง และมีการหดตัวต่ำ
- มีทั้งชนิด ที่ให้ความร้อนจึงจะแข็งตัว (Heat Setting Mortars) และชนิดที่ให้ความแข็งแรงที่อุณหภูมิห้อง (Air Setting Mortars)
การใช้งาน
- ใช้เป็นตัวกลางในการก่ออิฐทนไฟทุกชนิดและทนทานต่อความร้อนสูงและปฏิกิริยาทางเคมี
Our Mortar Refractories |
Castable
Highlights
- Reduce installation cost and provide outstanding performance as good as refractory bricks
- Ease of installation and economical in cost
- Casted and vibrated almost by the same style as ordinary concrete
- Provide a better conditions with fewer joints in where refractory bricks are incapable.
Application
- Castable is an alternative to fireclay bricks and high alumina for applications such as sidewalls, arc furnaces roofs, boilers, heat exchangers, bubbling lances, glass furnaces, reheating furnaces and blast furnaces in conditions requiring extra strength.
- Applicable for cyclone preheatings of cement kilns, burner pipes, nose rings, clinker coolers of cement process, stacks, sub-bottoms of various type of furnaces, etc.
ลักษณะพิเศษ
- ป้องกันการสูญเสียความร้อนได้ดีและประหยัดพลังงาน
- มีทั้งชนิดน้ำหนักเบา และ หนัก ความเป็นฉนวนสูง หรือ ความแข็งแรงสูง
- สามารถรักษารูปทรง สัณฐาน และขนาดได้ดีในอุณหภูมิสูง
การใช้งาน
- ใช้เป็น Back up lining ของอิฐไฟร์เคลย์ และอิฐอลูมินาสูง ในหม้อไอน้ำ, เตาเผาเซรามิก, เตาเหล็กรีดซ้ำ, เตาหลอมแก้ว เตาเผาขยะประสิทธิภาพสูง และเตา Periodic เป็นต้น
- ใช้เป็น Back up lining ของ Cyclone, Preheaters และ Cooler ในอุตสาหกรรมปูนซีเมนต์ และใช้เป็นพื้นของรถเตาเซรามิก เป็นต้น
- ใช้เป็น Hot face lining สำหรับเตาเผาและ เตาหลอมทั่วไปได้
- ใช้ได้ทุกหมวดอุตสาหกรรม เช่น เหล็ก , แก้ว , อลูมิเนียม , เตาหลอมทองแดง , เตาเผาขยะต่างๆ
Our Castable |
Basic Brick
Highlight
- High resistance to corrosive reaction of chemical substances, basic slag, solid or liquid oxides, dusts and fumes.
- High-fire brick providing high hot strength as well as good thermal spalling and abrasion and liquid metal penetration resistance.
- Good volume stability.
- Magnesia bricks, Magenesia-Chrome bricks, Magesia-Spinel bricks and Magnesia-Carbon bricks are available.
Applications
- For lower & upper transition zone and burning zone of rotary cement kilns and lime kilns.
- Applicable for ladle furnace in iron and steel industry.
- Applicable for non-ferrous industry such as lead, tin, etc. wet glass furnaces, etc.
Our Basic Brick |
Gunning Mixes
Highlight
- A mix of high quality refractory grains with special binders.
- Good abrasion resistance and high thermal conductivity.
Applications
- Generally applied with gunning machines to save time and installation costs.
- Used for maintenance of many industrial furnace linings, where repairs need to be made with little or no downtime.
- General hot repairing for open-hearth furnaces, electric arc furnaces, eccentric bottom tapping furnaces, ladles torpedo or transfer cars, etc.
- Used for difficult service conditions such as incinerators, heating chambers, fluidized- bed catalytics, cracking process transfer lines, etc.
Our Gunning Mixes |
Ramming Mixes
Highlight
- Excellent resistance to basic slag and to thermal spalling at high temperatures.
- Suitable for forming dense monolithic lining at hearth in electric arc furnaces.
- Casted and vibrated almost by the same style as ordinary concrete.
- High refractoriness, excellent volume stability and good resistance to various fluxes found in iron and steel furnaces.
Applications
- Applied for working lining for healths of electric arc furnaces’ hearths where high iron oxide slags (basic to neutral) are especially corrosive.
Our Ramming Mixes |
Plastic Refractories (พลาสติกทนไฟ)
Highlight
- Provide high strength, high density and low shrinkage combined with excellent volume stability throughout the entire temperature ranges.
- Highly resistance to thermal spalling and many types of acid slags.
- Both heat-setting and air-setting types are available.
Applications
- For forming refractory monolithic lining in various kinds of furnaces.
- Easily rammed to any shape or contour with pneumatic.
- hammers, but may also be pounded into place with a mallet.
- For high temperature steel plant service, burner block, roofs and sidewall as well as reheating furnace.
ลักษณะพิเศษ
- มีความแข็งแรงและความหนาแน่นสูง สามารถรักษารูปทรง สัณฐาน ให้คงที่ภายใต้ระดับอุณหภูมิใช้งาน รวมทั้งมีการหดตัวต่ำ
- ทนต่อการหลุดร่อนเนื่องจากการเปลี่ยนแปลงอุณหภูมิอย่างรวดเร็ว และทน slag ที่เป็นกรดชนิดต่างๆ
- มีทั้งชนิดที่แข็งตัวหลังจากให้ความร้อน และชนิดแข็งตัวที่อุณหภูมิห้อง
การใช้งาน
- สามารถใช้ติดตั้งเป็นโครงสร้างของเตาแทนการใช้อิฐทนไฟได้ในเตาหลายชนิด
- ติดตั้งได้ง่ายด้วยค้อนลม
- hammers, but may also be pounded into place with a mallet.
- ใช้ในอุตสาหกรรมเหล็กบริเวณที่มีอุณหภูมิสูง เช่น บริเวณ Burner Block หลังคาเตา และผนังของ Reheating furnaces เป็นต้น
Our Plastic Refractories |
Ceramic Fiber
Ceramic Fiber is made of high purity Alumion-Silicate fibrous wool. There are many types such as Blanket , Board , Paper , Bulk , Textile , Yarn rope. Temperature 1260C – 1800C
Highlight
- Needled blanket , form Board or textiles
- Non-combustible
- Service Temperature 1260C – 1800C
- Low thermal conductivity
- Shorter heat up and cool down time
- Resilience and resistance to thermal shock
- Flexible and easy to cut or install
- Consist of acoustic properties
- Asbestos free
Applications
- Refractory back-up installation
- Direct exposure to heat as furnace hot face lining
- Expansion joint seal
- Fire protection
Our Ceramic Fiber Product |
Calcium silicate
Calcium silicate are premoulded thermal insulation products composed of hydrated xonolite crystals and supplemented by non-asbestos fibers as binder. The material is specially developed to provide effective and economical thermal insulation and fire proofing for wide range of piping and equipment applications.
Calcium silicate are widely applied in chemical processing plants, petroleum refineries, power stations, ship buildings and other industrial installation, where heat energy saving is of vital necessity.
Highlight
- Temperature 650C – 1100C
- Light weight
- Incombustible
- Low thermal conductivity
- Excellent heat resistance
- High service temperature
- Good workability
- Dimensionally stable
Applications
- Back up insulation for various furnace
คุณสมบัติ
เป็นฉนวนที่มีลักษณะพรุน ผลิตจากทรายซิลิเซียส น้ำปูนขาว และเส้นใยเพื่อเพิ่มการเสริมแรง แล้วจึงนำมาผ่านกระบวนการอบด้วยความร้อนสูง Calcium silicate มีคุณสมบัติไม่เผาไหม้ ไม่ลามไฟ และ ไม่มีสารพิษ ไม่ผสมเส้นแร่ใยหิน Asbestos และเส้นใยสังเคราะห์อื่นๆ ที่เป็นอันตรายต่อร่างกาย Calcium silicate เป็นฉนวนที่มีน้ำหนักเบา แข็งแรงทนทาน ไม่เกิดการกัดกร่อน เหมาะกับงานเตาอบ เตาหลอมในโรงงานอุตสาหกรรม หรืองานที่มีอุณหภูมิการใช้งานสูง ช่วยป้องกันการสูญเสียพลังงานได้เป็นอย่างดี
ทนไฟได้ตั้งแต่ 650C – 1000C มีทั้งชนิดแผ่น และ ชนิดท่อสำเร็จ มีควมหนาตั้งแต่ 25mm. ขึ้นไป
Rockwool (Roxul)
ผลิตจากหิน แต่มีเนื้อสัมผัส เหมือนขนสัตว์ เรียกอีกอย่างว่า Mineral Wool หรือ Stone Wool ไม่มีสารก่อมะเร็ง (Non Asbestos)
ร็อควูล สามารถใช้งานได้ในช่วงอุณหภูมิตั้งแต่ -240C ถึง +820C รวมถึงงานที่ต้องการเก็บเสียง งานอุตสาหกรรม ระบบกันไฟ สามารถลดเสียงได้กว่า 80% และช่วยให้ประหยัดไฟได้ถึง 70%
คุณสมบัติฉนวนใยหิน
– ผลิตมาจากหินธรรมชาติผ่านกระบวนการผลิตที่อุณหภูมิสูงถึง 1,300 องศาเซลเซียส
หลอมเหลวเป็นเส้นใยและเคลือบด้วยสารผนึกเทอร์โมเซตติ้ง
– มีค่าการนำความร้อนต่ำ จึงสามารถกันความร้อนได้ดี จึงช่วยประหยัดพลังงาน
– ไม่ติดไฟ ไม่ลามไฟ
– น้ำหนักเบา ไม่ดูดซับความชื้น ไม่ทำปฏิกิริยากับโลหะ
– ดูดซับเสียงได้ดี
– มีคุณสมบัติเป็นฉนวนที่ดีเยี่ยมในช่วงอุณหภูมิ 1 ถึง +820 องศาเซลเซียส
การใช้งาน
ฉนวนใยหิน มีความหนาแน่น ตั้งแต่ 40-200 กก./ ลบ.ม. ความหนาปกติ ตั้งแต่ 50-200 มม. มีทั้งชนิดแผ่น (Slab) ชนิดม้วน (Blanket) และชนิดท่อขึ้นรูป (Sectional Pipe Insulation) นิยมใช้เป็นฉนวนใต้หลังคา ระบบปรับอากาศ ระบบกันไฟ ผนังกันความร้อน ผนังกันเสียง Curtain wall สำหรับบ้านพักอาศัย อาคารสมัยใหม่ สำนักงาน โรงงาน และใช้กับงานฉนวนหุ้มท่อ เตาอบ ท่อไอน้ำ ระบบนำความร้อนในงานอุตสาหกรรม โรงไฟฟ้า
